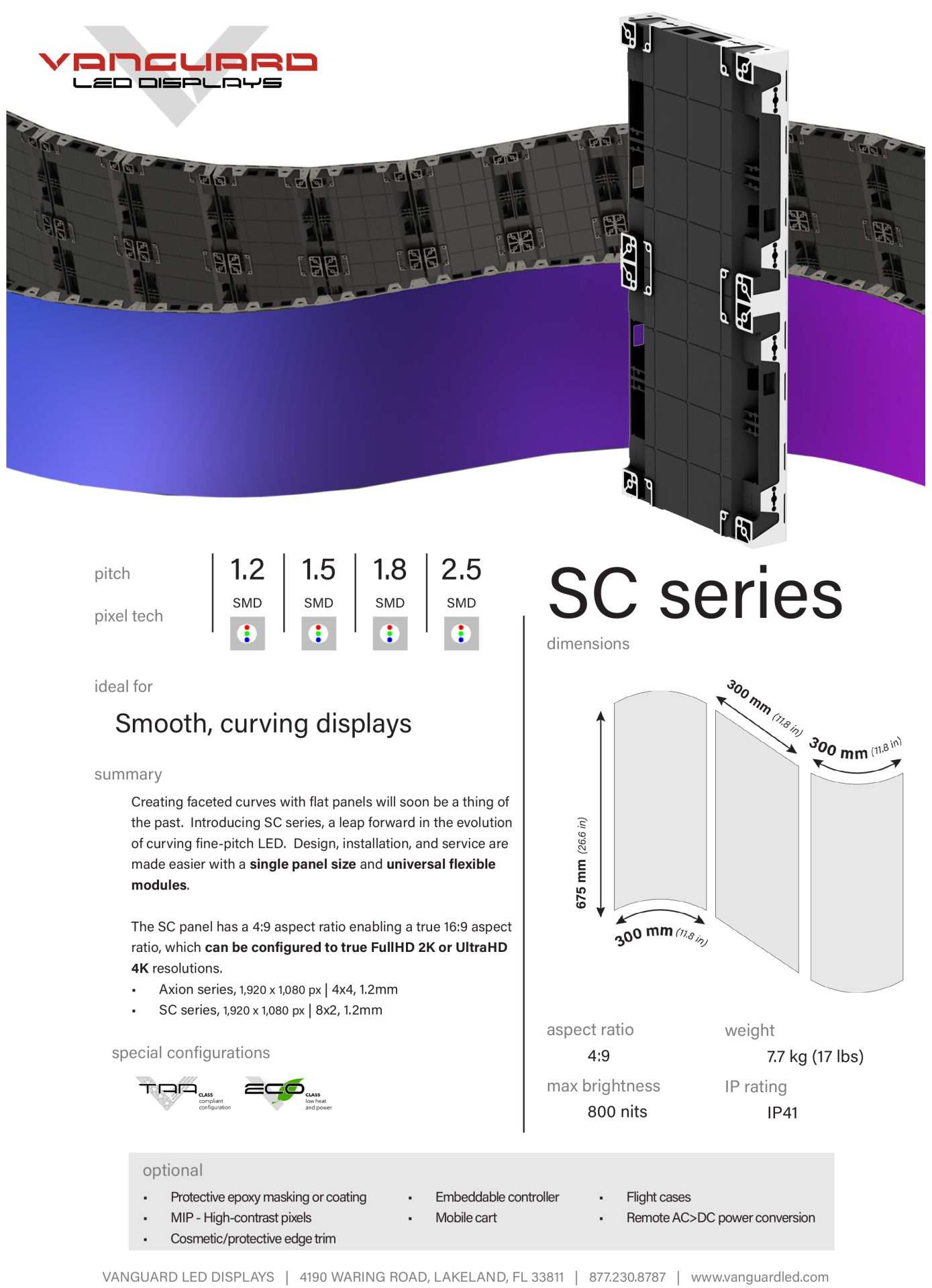

SC Series

The Vanguard LED Displays’ SC Series is a leap forward in the curving fine pitch LED screens. Individual panels have universal flexible modules that create smooth, curving LED displays.

The SC Series smallest diameter possible to make a perfect cylinder is 1.2 meters (3.9’).

The SC Series can support a maximum 30-degree angle either concave or convex.

12 panels of the SC Series can produce a 360-degree circle with a 1.2 meter (3.9’) diameter.

The SC panel has a 4:9 native aspect ratio enabling a true 16:9 aspect ratio, which can be configured to a true FullHD 2K or UltraHD 4K resolutions. 1920 x 1080 pixels; 8 x 2; 12mm.

Options:

• Protective Epoxy resin coating.
• MIP- High Contrast panels.
• Cosmetic/protective edge trim.
• Embeddable controller.
• Mobile cart.
• Flight cases.
• Remote AC/DC power Connection.

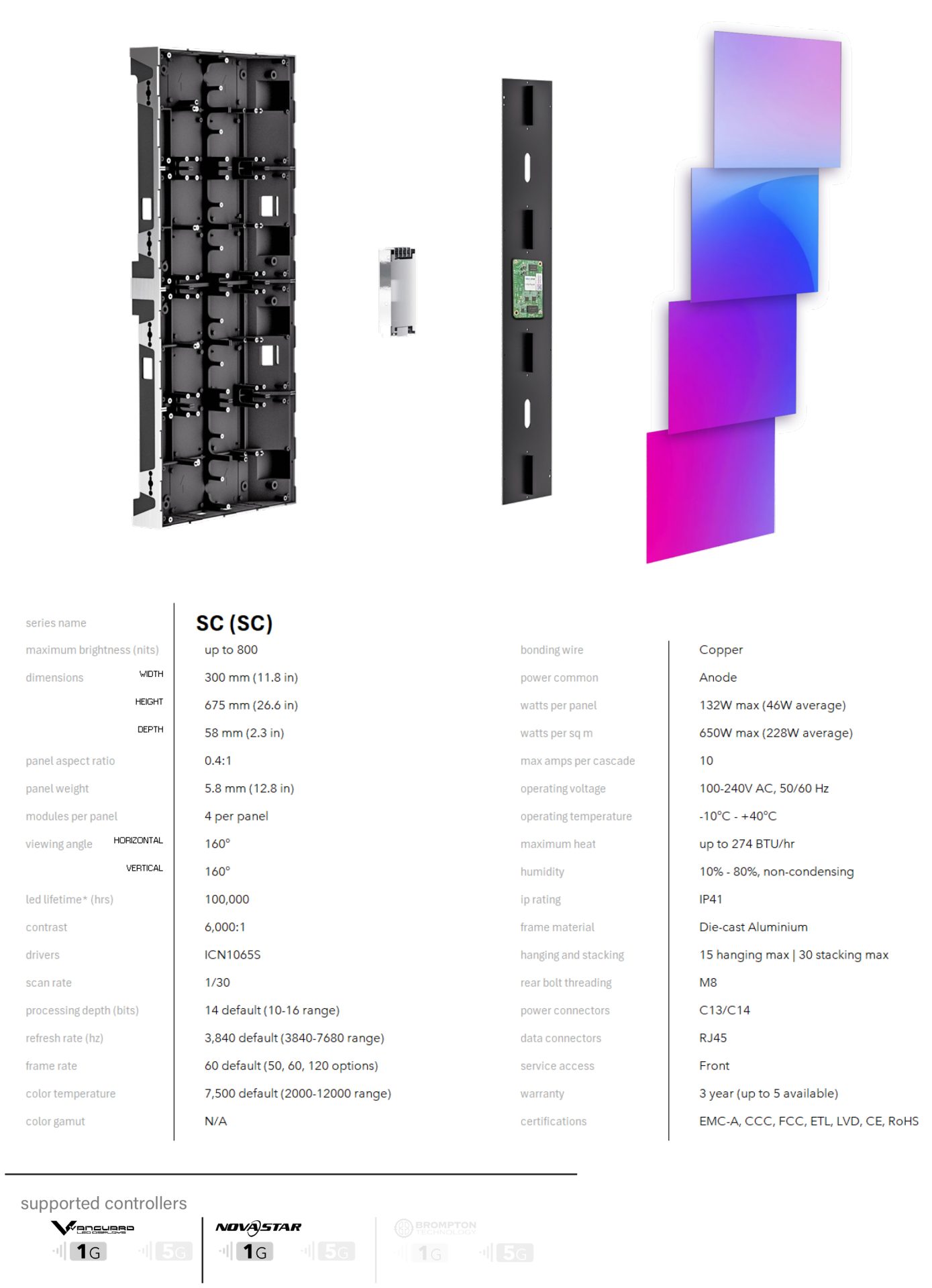

Brightness- Up to 800 nits.

Contrast- 6000:1

Scan Rate- 1/30/2025

Refresh Rate- 3840 default- Up to 7680 possible.

Frame Rate- 60 default- Optional to 120.

Processing Depth- 14 default- 10-16 range.

Warranty- 3 years
